- 1.4 GHz 64-bit quad-core ARMv8 CPU, 1GB RAM
- 802.11 b/g/n/ac Wireless LAN, 10/100/1000Mbps Lan Speed
- Bluetooth 4.2, Bluetooth Low Energy
- 4 USB ports, 40 GPIO pins, Full HDMI port, Combined 3.5mm audio jack and composite video
- Camera interface (CSI), Display interface (DSI), Micro SD card slot (now push-pull rather than push-push), VideoCore IV 3D graphics core

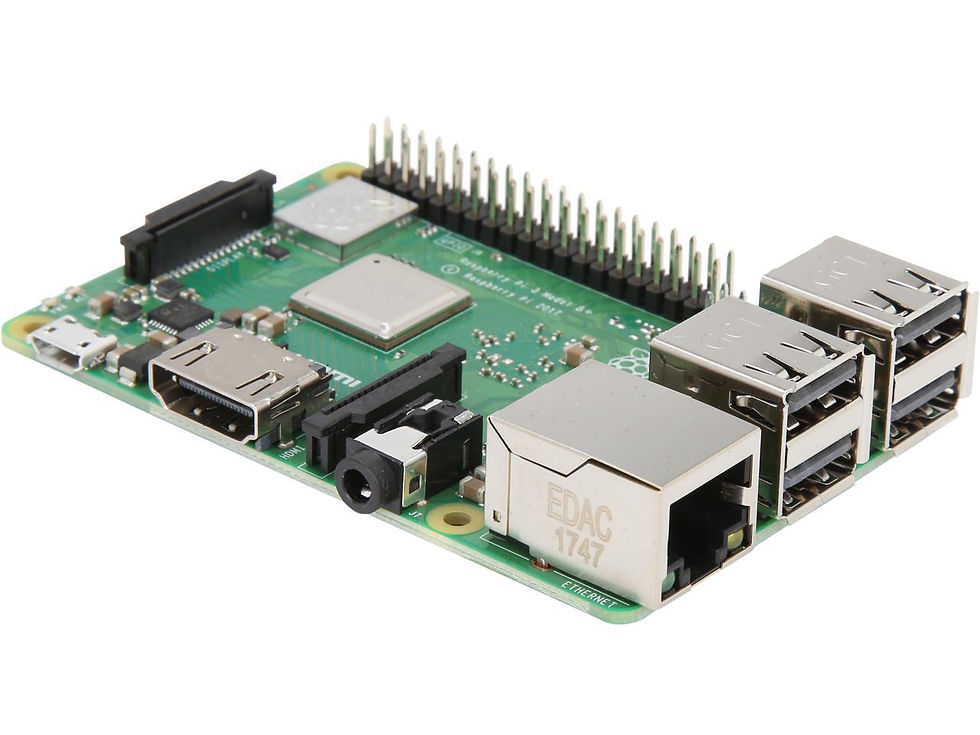

Raspberry Pi 3 Model B+
Specifications
Overview
Brand
Raspberry Pi
Model
2773729
Combo Type
Motherboard / CPU / Memory Combo
Bundle
CPU
Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4 GHz
Memory
1GB LPDDR2 SDRAM
Onboard LAN
LAN Speed
10/100/1000Mbps
Wireless LAN
2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN
Bluetooth
Bluetooth 4.2, BLE
Rear Panel Ports
HDMI
1 x full size HDMI
USB 1.1/2.0
4 x USB 2.0
Internal I/O Connectors
Other Connectors
Extended 40-pin GPIO header
CSI camera port for connecting a Raspberry Pi camera
DSI display port for connecting a Raspberry Pi touchscreen display
Features
Features
The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range, boasting a 64-bit quad-core processor running at 1.4 GHz, dual-band 2.4 GHz and 5 GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT.
The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.
The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.
Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
4-pole stereo output and composite video port
Micro SD port for loading your operating system and storing data
5V/2.5A DC power input
Power-over-Ethernet (PoE) support (requires separate PoE HAT)
