• Qi™ inductive wireless charging technology
• Fast charge provides an output of up to 10W for standard Qi™ devices and up to 7.5W for standard Qi™ devices such as iPhone® X/8/8 PLUS
• Standard charge provides an output of up to 5W for standard Qi™ devices.
• LEDs indicate device and charger status
• Surge protection to ensure safe charging
• Anti-slip charging pad keeps devices secure
• Sleek, compact and thin design

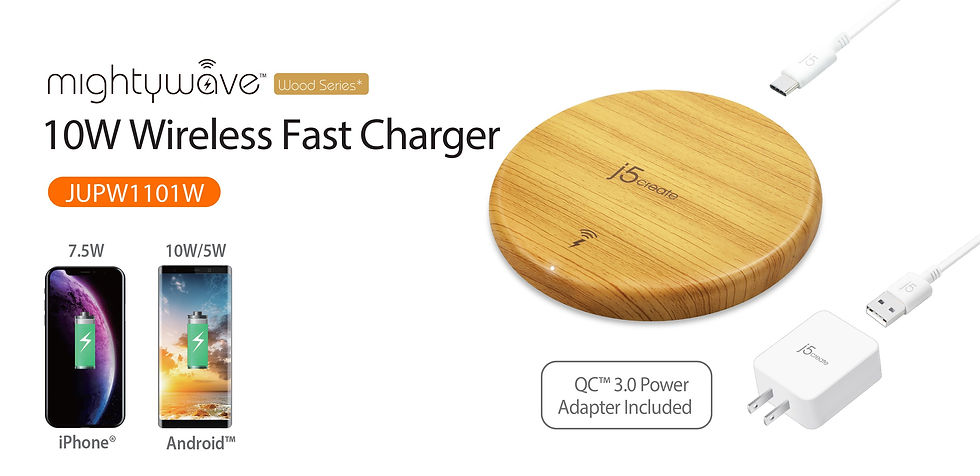

The 10W Wireless Charger is equipped with Qi™ inductive wireless charging technology to charge your device at Apple® or Android™ fast charge speed, up to 5V/1A – 1.5A or 9V/1.1A of power. Perfect for Apple®, iPhone® X/8/8 PLUS and select Android™ devices. Use a QC™ 3.0 adapter with your fast pad wireless charger for speedy charging at 7.5W or 10W (according to your phone’s model). The charger also comes with surge protection, overcharging protection, overcurrent and overheating protection, keeping your devices safe.

Product Description
• Qi™ inductive wireless charging technology
• Fast charge provides an output of up to 10W for standard Qi™ devices and up to 7.5W for standard Qi™ devices such as iPhone® X/8/8 PLUS
• Standard charge provides an output of up to 5W for standard Qi™ devices.
• LEDs indicate device and charger status
• Surge protection to ensure safe charging
• Anti-slip charging pad keeps devices secure
• Sleek, compact and thin design

The 10W Wireless Charger is equipped with Qi™ inductive wireless charging technology to charge your device at Apple® or Android™ fast charge speed, up to 5V/1A – 1.5A or 9V/1.1A of power. Perfect for Apple®, iPhone® X/8/8 PLUS and select Android™ devices. Use a QC™ 3.0 adapter with your fast pad wireless charger for speedy charging at 7.5W or 10W (according to your phone’s model). The charger also comes with surge protection, overcharging protection, overcurrent and overheating protection, keeping your devices safe.

JUPW1101W Specifications

Hardware
10W Wireless Charger
Input
5V/2A, 9V/2A, 12V/1.5A
Output
5V/1A – 1.5A or 9V/1.1A
Quick Charge™ 3.0 Charger
Input
100 – 240V, 50/60 Hz, 0.5A
Output
5V/3A, 9V/2A, 12V/1.5A
Indicator Light Identification
Connected To A Power Outlet
Flashes blue, white 3 times and then white stays lit
Charging
Fades from warm white to blue 5 times and then turns off
When Not Charging Properly Due To Foreign Object Detection
Flashes blue, then enters protection mode and stops charging until the foreign object is removed
When Not Charging Properly Due To Overheating
Flashes blue and white, then enters protection mode and stops charging until the temperature returns to a safe level
Physical Specifications
Weight
10W Wireless Charger:
Approximately 0.15 lbs / 69g
Quick Charge™ 3.0 Charger:
Approximately 0.13 lbs / 58.5g
Environmental
Storage Temperature
-20 – 70°C
Storage Humidity
5 – 95% RH. Non-condensing
Operation Temperature
0 – 25°C
Operation Humidity
< 35 – 95% RH. Non-condensing

System Requirements
Compatible with all Qi™ devices
For 10W and 7.5W fast charge, the Quick Charge™ 3.0/2.0 charger (included) must be used
The fast charge only supports iPhone® and select Android™ devices.

Note:
Use only j5create approved chargers (5V/3A, 9V/2A, 2V/1.5A). Unauthorized chargers may cause damage or the wireless charger may malfunction.
To ensure the best charging performance, put the mobile device in the center of the 10W wireless charger. If the mobile device is not properly placed on the 10W wireless charger’s surface (depending on the location of the mobile device’s wireless charging coil), your mobile device may not charge properly.
Do not place foreign materials, such as metal objects, magnets or cards with a magnetic strip between the mobile device and the wireless charger. The mobile device may not charge properly or may become damaged due to overheating.
Wireless charging may not work properly if you have attached a thick case to your mobile device. If your case is thick, remove it before placing your mobile device on the wireless charger.

Package Contents
• JUPW1101W - 10W Wireless Fast Charger
• Quick Charge™ 3.0 Charger
• USB Type-C™ 2.0 cable 3.3 ft/100 cm
• QIG
